Loader Cranes - Compact Cranes

Compact lightweight solutions between one and four meter tonnes with real PALFINGER power

  •   High value retention thanks to KTL coating
  •   Optimum protection thanks to internal oil ducts in the extension cylinders
  •   Load holding valves prevent the crane boom from dropping
  •   Extended range of applications thanks to the optional radio remote control and cable winch

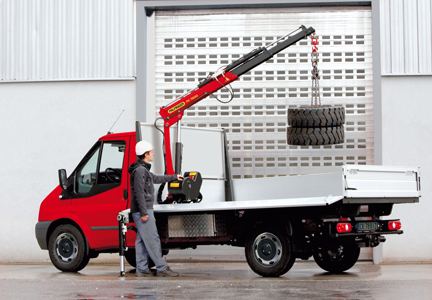

PC 1500 Compact

Technical Data

  •   Max. lifting moment - 1.4mt
  •   Max. lifting capacity - 990kg
  •   Max. hydraulic outreach - 3.1m
  •   Max. manual outreach - 4.2m
  •   Slewing angle - 325°
  •   Slewing torque with 1 gear - 0.2mt
  •   Fitting space required (std) - 0.40m
  •   Max. operating pressure - 200bar
  •   Dead weight (std.) - 164kg
  •   Width folded - 0.64m

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

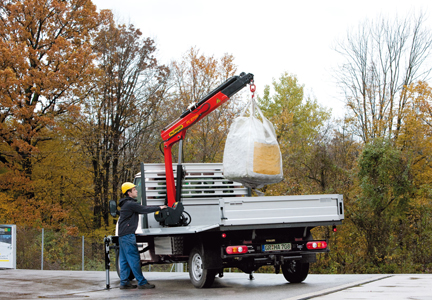

PC 2700 Compact

Technical Data

  •   Max. lifting moment - 2.6mt
  •   Max. lifting capacity - 2000kg
  •   Max. hydraulic outreach - 5.0m
  •   Max. manual outreach - 6.0m
  •   Slewing angle - 325°
  •   Slewing torque with 1 gear - 0.31mt
  •   Fitting space required (std) - 0.40m
  •   Max. operating pressure - 200bar
  •   Dead weight (std.) - 207kg
  •   Width folded - 0.77m

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

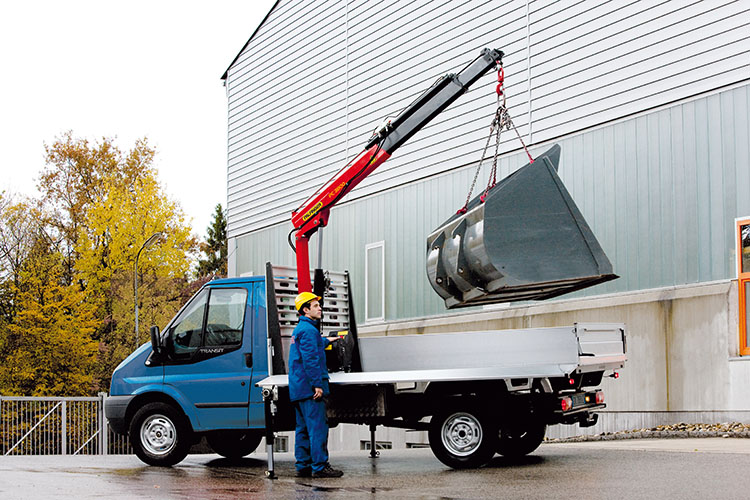

PC 3800 COMPACT

PC 3800 COMPACT

Technical Data

  •   Max. lifting moment - 3.7mt
  •   Max. lifting capacity - 2000kg
  •   Max. hydraulic outreach - 5.0m
  •   Slewing angle - 325°
  •   Slewing torque with 1 gear - 0.38mt
  •   Fitting space required (std) - 0.45m
  •   Max. operating pressure - 200bar
  •   Dead weight (std.) - 238kg
  •   Width folded - 0.77m

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
