LIGHT CRANES



THE CRANE GEOMETRY IS SIGNIFICANTLY IMPROVED DUE TO THE LINKAGE SYSTEM



More power in the hook due to Single Link

Shorter load cycle times due to High Speed Extension

Higher payloads due to intelligent lightweight design

PK 5.001 SLD 1

TECHNICAL DATA

Specification

Max. lifting moment                                     4.6 mt

Max. lifting capacity                                     3300 kg

Max. hydraulic outreach                               11.1 m

Max. manual outreach                                 12.7 m

Slewing angle                                             400°

Slewing torque with 1 gear                          0.6 mt

Stabilizer spread (std)                                 2,9 m

Fitting space required (std)                          0.66 m

Max. operating pressure                              330 bar

Dead weight (std.)                                      695 kg

Width folded                                               2.10 m

Pump capacity                                            15 - 20 l/min





Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 5.001 SLD 1 BROCHURE

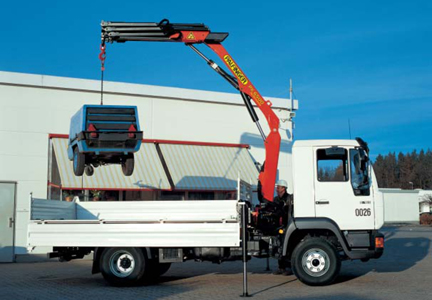

PK 6500 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                                    5.7 mt

Max. lifting capacity                                    3300 kg

Max. hydraulic outreach                               9.6 m

Slewing angle                                             400°

Slewing torque with 1 gear                          0.7 mt

Stabilizer spread (std)                                 3.0 m

Fitting space required (std)                          0.57 m

Max. operating pressure                              315 bar

Dead weight (std.)                                      708 kg

Width folded                                               2.30 m



The new PK 6500 Performance is an ideal crane for light vehicles, e.g. for use in the municipal sector. As standard it comes with everything required for tough daily duty: Know-how and leading technology from PALFINGER. This makes it safe and reliable and proves you with high efficiency for every job. Users can rely on it because the after-service is also right.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 6500 BROCHURE

PK 7.001 SLD 1

TECHNICAL DATA

Specification

Max. lifting moment                                     6.2 mt

Max. lifting capacity                                     3300 kg

Max. hydraulic outreach                               11.2 m

Max. manual outreach                                 12.9 m

Slewing angle                                             400°

Slewing torque with 1 gear                          0.8 mt

Stabilizer spread (std)                                 3,0 m

Fitting space required (std)                          0.66 m

Max. operating pressure                              330 bar

Dead weight (std.)                                      750 kg

Width folded                                               2.20 m

Pump capacity                                            20 - 30 l/min



HIGHER PAYLOAD DUE TO INTELLIGENT LIGHTWEIGHT DESIGN



• More power on the hook due to Single Link

• Shorter load cycle times due to High Speed Extention

• Perfect appearance and the highest value retention due to KTL



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 7.001 SLD 1 BROCHURE

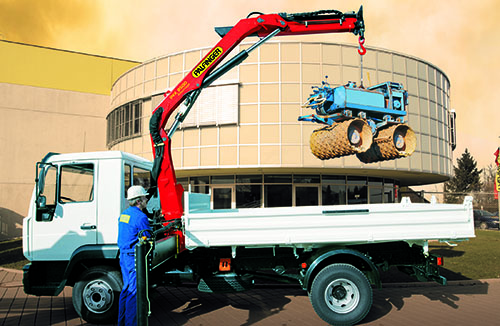

PK 8500 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                                    7.6 mt

Max. lifting capacity                                    3300 kg

Max. hydraulic outreach                               9.6 m

Slewing angle                                             400°

Slewing torque with 1 gear                          0.9 mt

Stabilizer spread (std)                                 3.2 m

Fitting space required (std)                          0.66 m

Max. operating pressure                              315 bar

Dead weight (std.)                                      875 kg

Width folded                                               2.30 m











Its perfect ratio of dead weight to lifting capacity makes the PK 8500 Performance the yardstick for its class. High-strength fine-grained structural steel and its numerous equipment features result in precise and flexible performance even under demanding conditions. PK 8500 Performance – a strong partner to help you handle any job.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 8500 BROCHURE

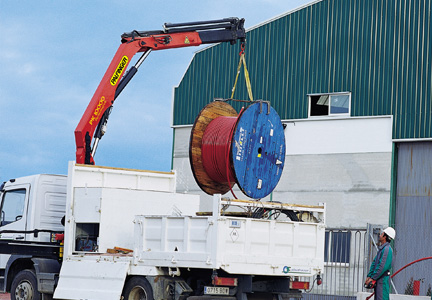

PK 10000 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                                    9.5 mt

Max. lifting capacity                                    5700 kg

Max. hydraulic outreach                               12.5 m

Slewing angle                                             400°

Slewing torque with 1 gear                          1.2 mt

Stabilizer spread (std)                                 10' 9"

Fitting space required (std)                          0.70 m

Max. operating pressure                              315 bar

Dead weight (std.)                                      1031 kg

Width folded                                               2.50 m



The PK 10000 Performance – the perfect crane for general duty! Because of its maximum ratio of weight to lifting capacity – the leading performance in this metre-tonne class – and its practical equipment specification, it becomes your perfect working unit. The use of high-strength fine-grained structural steel and the new hexagonal boom profile make it possible to have an enormous hydraulic outreach of 12.4 m.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 10000 BROCHURE
