KIT LOW SMART TELESCOPIC AERIAL PLATFORMS



TELESCOPIC aerial platforms provided in KIT form, with working heights ranging from 9 to 11 m, installable on a number of commercial vehicles available on the market, thereby meeting the needs of customers all round the world . These kits offer all the features that make the platforms manufactured by PALFINGER special, which means they are ERGONOMIC, COMPACT, EASY TO USE, SIMPLE TO MAINTAIN, SAFE and VERSATILE DURING OVERHEAD work, and - last but not least - they offer PALFINGER QUALITY.

P90T KIT LOW SMART

TECHNICAL SPECIFICATIONS



Maximum working height             8,80 m

Maximum cage floor                    6,80 m

Maximum lateral outreach            5,00 m

Angle of main boom                    -30° + 60°

Turntable rotation                       360°

Basket capacity                          120 kg

Basket dimensions                      0,85 x 0,7 x 1,1 m

Installable on Truck GVW             2.2 ton minimum



P90T KIT Truck-mounted aerial platform installed on extremely  small light vehicles. Designed for operations  in areas which are apparently unreachable areas and where stabilisation seems impossible, such as chaotic, congested town and city centres  or areas with access issues, such as historical neighborhoods.



Due to its ease of use, this aerial platform is supplied in kit form so it can be installed on a number of truck models available on the market, thereby meeting the needs of customers all round the world.



ERGONOMIC, COMPACT, EASY TO USE, SIMPLE TO MAINTAIN (thanks to its fully hydraulic operation), SAFE, and  – not least –  PALFINGER QUALITY all describe both the P90T and all the aerial platforms manufactured by PALFINGER.



CLICK HERE TO DOWNLOAD THE DATA SHEET A



CLICK HERE TO DOWNLOAD THE DATA SHEET B

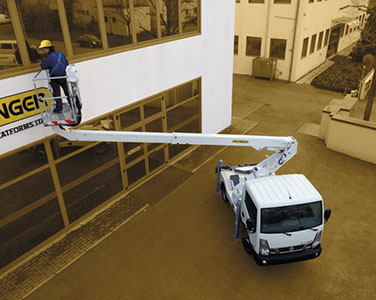

P110T KIT LOW SMART

TECHNICAL SPECIFICATIONS





Maximum working height             11 m

Maximum cage floor                    9 m

Maximum lateral outreach            6,80 m

Angle of main boom                    -30° + 60°

Turntable rotation                       280°

Basket capacity                          200 kg

Basket dimensions                      1,4 x 0,7 x 1,1 m

Installable on Truck GVW             3.2 ton minimum



P110T KIT Truck-mounted aerial platform (minimum GVW: 3.5 tonnes) featuring extremely small overall dimensions. Designed for use in tight spaces like those found in town and city centres. Also ideal for jobs that can be carried out quickly and safely while parked on the road.



Due to its ease of use, this aerial platform is supplied in kit form so it can be installed on a number of truck models available on the market, thereby meeting the needs of customers all round the world.



ERGONOMIC, COMPACT, EASY TO USE, SIMPLE TO MAINTAIN (thanks to its fully hydraulic operation), SAFE, and – not least – PALFINGER QUALITY all describe both the P110T and all the aerial platforms manufactured by PALFINGER.



CLICK HERE TO DOWNLOAD THE DATA SHEET A



CLICK HERE TO DOWNLOAD THE DATA SHEET B

SMART – Telescopic aerial platforms



Palfinger Platforms Italy, a market leader in lifting solutions, specializes in the design, manufacture, marketing and after-sales support of telescopic aerial platforms. These range up to 28mt of working height, while maintaining a small footprint.



Our telescopic aerial platforms are installed on trucks, to ensure ease and convenience of use.



Telescopic aerial platforms from Palfinger, well known for using the best quality materials and the precision engineering of their products, are the best solutions on the market for operating directly from the roadway, thanks to the characteristics that distinguish them: small footprint, speed, performance and operational safety.



Find out about all the products in our range of efficient and highly reliable telescopic aerial platforms from Palfinger. Do not hesitate to contact us for more information about our products and customised quotes. Thanks to the Palfinger Group’s extensive and worldwide distribution network, we can provide a quick and on-time delivery to any part of the world.

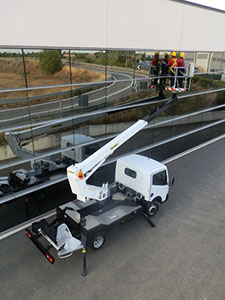

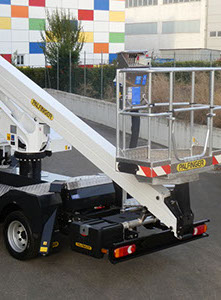

P140T smart

TECHNICAL SPECIFICATIONS





Max. working height                                    13.5 m

Max. basket bottom height                           11.5 m

Max. outreach                                             8.4 m

Angle of main boom                                     -25° a +80°

Rotation angle of turntable                           370°

Rotation angle of basket                               2 x 90°

Basket load                                                 200 kg

Size of basket                                             1.4x0.85x1.1 m

Height in transport position                          2.89 m

Width in transport position                           2.1 m

Total length                                                 6.05 m

Total weight                                                3200 kg



P140T Truck-mounted telescopic aerial platform (3.5 tons) that offers great versatility in terms of height and quick action directly from the roadbed. It is small and smart, ideal for work in urban spaces.



The maximum working height is 13.5 m and the machine, thanks to its compactness and reduced stabilisation area, has a high-performing working outreach with 200 kg in the basket, over the entire work area. Rotating basket 90°+90°. Equipped with a great number of standard features, and manufactured with great attention to details and finishes.



ERGONOMIC, COMPACT, EASY TO USE, SIMPLE TO MAINTAIN thanks to its fully hydraulic operation; SAFETY and VERSATILITY DURING OVERHEAD work and PALFINGER QUALITY distinguish the P140T platform and all the aerial platforms of PALFINGER, created to meet and satisfy the needs of our customers. The platform is available also in kit version.



CLICK HERE TO DOWNLOAD THE DATA SHEET

P170TXE smart

TECHNICAL SPECIFICATIONS







Max. working height                                    17.0 m

Max. basket bottom height                           15.0 m

Max. outreach                                             10.8 m

Angle of main boom                                     -25° a +80°

Rotation angle of turntable                           370°

Rotation angle of basket                               2 x 90°

Basket load                                                 230 kg

Size of basket                                             1.4x0.85x1.1 m

Height in transport position                          2.89 m

Width in transport position                           2.1 m

Total length                                                 6.1 m

Total weight                                                3200 kg



P170TXE Truck-mounted telescopic aerial platform (3.5 tons) that offers great versatility in terms of height and quick action directly from the roadbed. It is small and smart, ideal for work in urban spaces.



The maximum working height is 17 m with a significant maximum lateral outreach of 11.80 m. Maximum load capacity 230 kg with 90°+90° basket rotation. The machine can be stabilised either within the vehicle’s outer limits, for maximum compactness, or by extending the front arms, for maximum performance.



Equipped with a great number of standard features, and manufactured with great attention to details and finishes. ERGONOMIC, COMPACT, EASY TO USE, SIMPLE TO MAINTAIN thanks to its fully hydraulic operation; SAFETY and VERSATILITY DURING OVERHEAD work and PALFINGER QUALITY distinguish the P170TXE platform and all the aerial platforms of PALFINGER PLATFORMS ITALY, created to meet and satisfy the needs of our customers. The platform is available also in kit version.



CLICK HERE TO DOWNLOAD THE DATA SHEET
