SMALL CRANES



Compact lightweight solutions between one and four meter tonnes with real PALFINGER power



• High value retention thanks to KTL coating

• Optimum protection thanks to internal oil ducts in the extension cylinders

• Load holding valves prevent the crane boom from dropping

• Extended range of applications thanks to the optional radio remote control and cable winch

PC 1500 COMPACT

TECHNICAL DATA

Specification

Max. lifting moment                    1.4 mt

Max. lifting capacity                    990 kg

Max. hydraulic outreach               3.1 m

Max. manual outreach                 4.2 m

Slewing angle                             325°

Slewing torque with 1 gear          0.2 mt

Fitting space required (std)          0.40 m

Max. operating pressure              200 bar

Dead weight (std.)                      164 kg

Width folded                               0.64 m



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PC 1500 BROCHURE

PC 2700 COMPACT

TECHNICAL DATA

Specification

Max. lifting moment                    2.6 mt

Max. lifting capacity                    2000 kg

Max. hydraulic outreach              5.0 m

Max. manual outreach                 6.0 m

Slewing angle                             325°

Slewing torque with 1 gear          0.3 mt

Fitting space required (std)          0.40 m

Max. operating pressure              200 bar

Dead weight (std.)                      216 kg

Width folded                               0.77 m



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PC 2700 BROCHURE

PC 3800 COMPACT

TECHNICAL DATA

Specification

Max. lifting moment                    3.7 mt

Max. lifting capacity                    2000 kg

Max. hydraulic outreach              5.0 m

Slewing angle                             325°

Slewing torque with 1 gear          0.4 mt

Fitting space required (std)          0.45 m

Max. operating pressure              200 bar

Dead weight (std.)                      238 kg

Width folded                               0.77 m



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PC 2700 BROCHURE

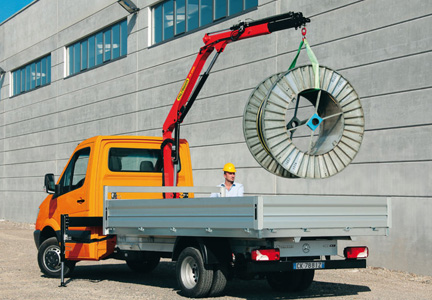

PK 2900 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                    2.5 mt

Max. lifting capacity                    990 kg

Max. hydraulic outreach              6.4 m

Slewing angle                             370°

Slewing torque with 1 gear          0.3 mt

Stabilizer spread (std)                 3.3

Fitting space required (std)          0.45 m

Max. operating pressure              250 bar

Dead weight (std.)                      374 kg

Width folded                               0.77 m



Versatile small cranes with optimised power-to-weight ratio for lightweight

commercial vehicles.



High outreach with up to four hydraulic extensions

Optimised dead weight

Small overall width for use in inner city areas

High value retention due to KTL coating



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK2900 BROCHURE

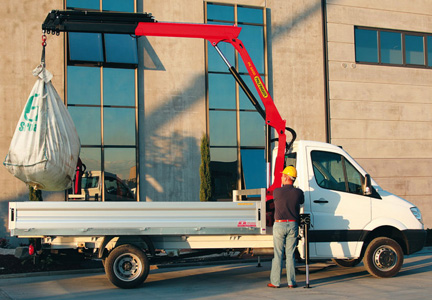

PK 3400 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                    3.1 mt

Max. lifting capacity                    990 kg

Max. hydraulic outreach              9.7 m

Slewing angle                             370°

Slewing torque with 1 gear          0.4 mt

Stabilizer spread (std)                 3.3

Fitting space required (std)          0.53 m

Max. operating pressure              250 bar

Dead weight (std.)                      447 kg

Width folded                               1.90 m



Versatile small cranes with optimised power-to-weight ratio for lightweight

commercial vehicles.



High outreach with up to four hydraulic extensions

Optimised dead weight

Small overall width for use in inner city areas

High value retention due to KTL coating



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK3400 BROCHURE

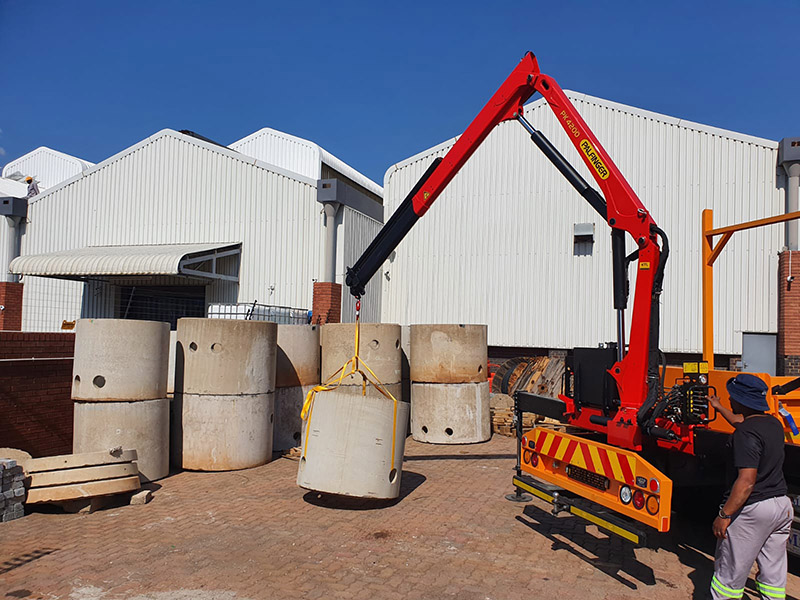

PK 4200 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                    3.9 mt

Max. lifting capacity                    990 kg

Max. hydraulic outreach              9.7 m

Slewing angle                             370°

Slewing torque with 1 gear          0.4 mt

Stabilizer spread (std)                 3.3

Fitting space required (std)          0.53 m

Max. operating pressure              250 bar

Dead weight (std.)                      491 kg

Width folded                               1.90 m



Versatile small cranes with optimised power-to-weight ratio for lightweight

commercial vehicles.



High outreach with up to four hydraulic extensions

Optimised dead weight

Small overall width for use in inner city areas

High value retention due to KTL coating



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK3400 BROCHURE
