MEDIUM CRANES



The perfect partner for handling building materials

Unit loads are its specialty

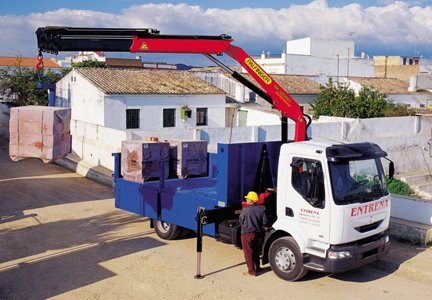

PK 12000 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                                    11.6 mt

Max. lifting capacity                                    6790 kg

Max. hydraulic outreach                               14.6 m

Slewing angle                                             420°

Slewing torque with 1 gear                          1.4 mt

Stabilizer spread (std)                                 4.6 m

Fitting space required (std)                          0.78 m

Max. operating pressure                              330 bar

Dead weight (std.)                                      1380 kg

Width folded                                               2.50 m











When bricks or concrete parts have to be unloaded and placed precisely on the construction site - the PK 12000 Performance has the right credentials for the job. Easy maintenance, quality and reliability are the result of decades of research and development work by PALFINGER. This makes it your reliable partner.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 12000 BROCHURE

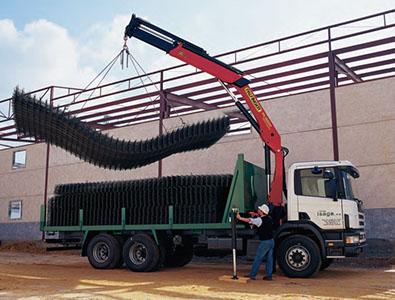

PK 15500 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                                     14.4 mt

Max. lifting capacity                                     6200 kg

Max. hydraulic outreach                               14.6 m

Max. outreach (with fly jip)                          18.8 m

Slewing angle                                             420°

Slewing torque with 1 gear                          1.8 mt

Stabilizer spread (std)                                 15' 1"

Fitting space required (std)                          0.81 m

Max. operating pressure                              300 bar

Dead weight (std.)                                      1619 kg

Width folded                                               2.50 m









The new PK 15500 Performance is the ideal crane for handling unit loads. It can lift light machinery and heavy structural components with ease. Thanks to years of practical experience and PALFINGER technical know-how it brings high efficiency to any job!



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 15500 BROCHURE

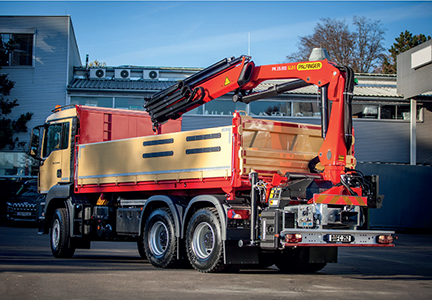

PK 17.001 SLD 1

TECHNICAL DATA

Specification

Max. lifting moment                                    16.8 mt

Max. lifting capacity                                    6200 kg

Max. hydraulic outreach                               14.8 m

Max. manual outreach                                 19.0 m

Slewing angle                                             420°

Slewing torque with 1 gear                          2.0 mt

Stabilizer spread (std)                                 5.0 m

Fitting space required (std)                          0.83 m

Max. operating pressure                              330 bar

Dead weight (std.)                                      1670 kg

Width folded                                               2.55 m

Pump capacity                                            von 40 bis 60 l/min



SOLID, SIMPLE AND AFFORDABLE



Additional applications with Power Link Plus

Higher payloads due to intelligent lightweight design

High degree of user-friendliness thanks to optional radio remote control



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 17.001 SLD 1 BROCHURE

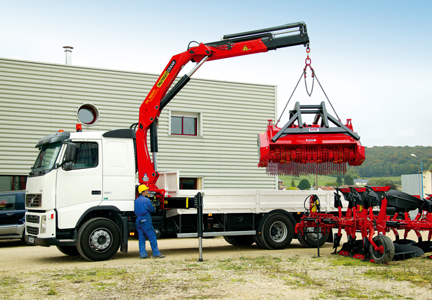

PK 18500 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                                     18.3 mt

Max. lifting capacity                                     8000 kg

Max. hydraulic outreach                               14.6 m

Max. outreach (with fly jip)                          18.8 m

Max. outreach (with fly jip)                          25.1 m

Slewing angle                                             400°

Slewing torque with 1 gear                           2.4 mt

Stabilizer spread (std)                                 4.8 m

Fitting space required (std)                          0.88 m

Max. operating pressure                              300 bar

Dead weight (std.)                                      2117 kg

Width folded                                               2.50 m







Ideally suitable for loading and unloading unit cargo and construction machinery, the PK 18500 Performance stands out by virtue of its reliability and versatility. Three stabiliser spreads and up to five hydraulic extension arms make it the perfect working unit for an extremely wide range of jobs.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 18500 BROCHURE

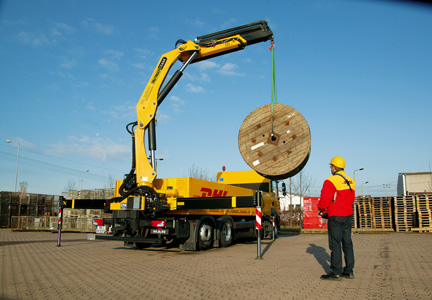

PK 23500 PERFORMANCE

TECHNICAL DATA

Specification

Max. lifting moment                                    23.0 mt

Max. lifting capacity                                    10000 kg

Max. hydraulic outreach                               16.7 m

Max. outreach (with fly jip)                          18.8 m

Max. outreach (with fly jip)                          25.0 m

Slewing angle                                             400°

Slewing torque with 1 gear                          2.8 mt

Stabilizer spread (std)                                 4.8 m

Fitting space required (std)                          0.88 m

Max. operating pressure                              300 bar

Dead weight (std.)                                      2346 kg

Width folded                                               2.50 m











Minimal dead weight and great outreach. With up to six hydraulic extensions and its impressive lifting moment the PK 23500 Performance is big at handling any job. Particularly safe and comfortable to control, it features three stabiliser spreads and – as an option – supports which can be swiveled up automatically.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 23500 BROCHURE

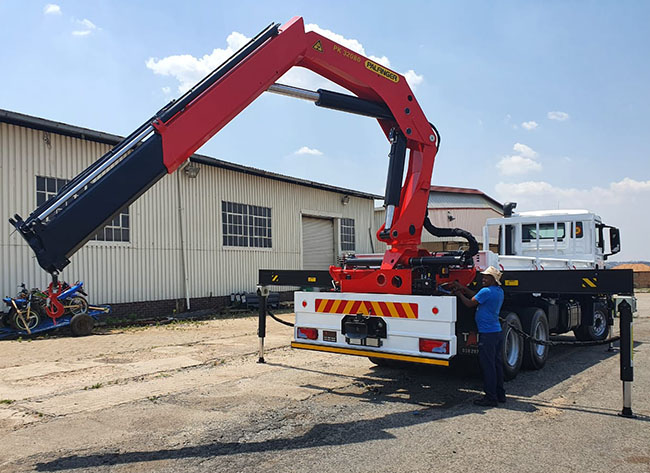

PK 32080

TECHNICAL DATA

Specification

Max. lifting moment                                    30.4 mt

Max. hydraulic outreach                               14.3 m

Max. outreach (with fly jip)                          24.9 m

Slewing angle                                             400

Slewing torque with 1 gear                          3.8

Stabilizer spread (std)                                 standard 6,0 m maximal 6,0 m

Fitting space required (std)                          0.97 m

Max. operating pressure                              300 bar

Dead weight (std.)                                      3130 kg

Width folded                                               2.50 m

Pump capacity                                            80.0





Power and efficiency. This model stands out for a rugged construction. The double rack and pinion slewing system enables a high slewing moment with a simple construction.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 32080 BROCHURE
