HEAVY CRANES



Powerful performance with low dead weight and high efficiency.

PK 36080 HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                     34.8 mt

Max. lifting capacity                                     8500 kg

Max. hydraulic outreach                               14.2 m

Max. manual outreach                                 20.7 m

Slewing angle                                             400°

Slewing torque with 1 gear                          3.8 mt

Stabilizer spread (std)                                 6.0 m

Fitting space required (std)                          0.98 m

Max. operating pressure                              300 bar

Dead weight (std.)                                      3800 kg

Width folded                                               2.55 m



Powerful performance with low dead weight and high efficiency.



High value retention due to KTL coating

Additional applications due to Power Link Plus

Maximum utilisation of the working range due to HPSC

Shorter load cycle times due to High Speed Extention



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 36080 BROCHURE

PK 36502 HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                     34.5 mt

Max. lifting capacity                                     13200 kg

Max. hydraulic outreach                               16.3 m

Max. manual outreach                                 23.3 m

Slewing angle                                             400°

Slewing torque with 1 gear                          4.0 mt

Stabilizer spread (std)                                 6.6 m

Fitting space required (std)                          1.28 m

Max. operating pressure                              320 bar

Dead weight (std.)                                      3800 kg

Width folded                                               2.55 m



Powerful performance with low dead weight and high efficiency.



High value retention due to KTL coating

Additional applications due to Power Link Plus

Maximum utilisation of the working range due to HPSC

Shorter load cycle times due to High Speed Extention



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 36502 BROCHURE

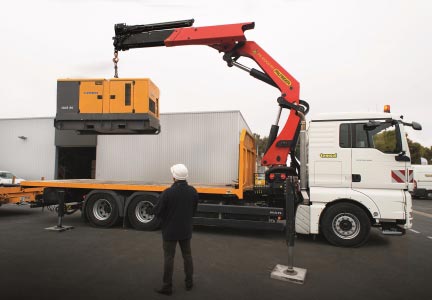

PK 41002 MH

TECHNICAL DATA

Max. lifting moment                                    38.4 mt

Max. lifting capacity                                    14600 kg

Max. hydraulic outreach                              16.3 m

Max. manual outreach                                 23.3 m

Slewing angle                                             400°

Slewing torque                                           4.0 mt

Stabilizer spread (std)                                 6,6 m

Fitting space required (std)                          1.28 m

Max. operating pressure                              350 bar

Dead weight (std.)                                      3800 kg

Width folded                                               2.55 m



A perfect combination of power and profitability



Increased operating times due to maintenance-free extension system

High value retention due to KTL coating

Additional applications due to Power Link Plus

Maximum utilisation of the working range due to HPSC

Designed and optimised for Non CE markets



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 41002 BROCHURE

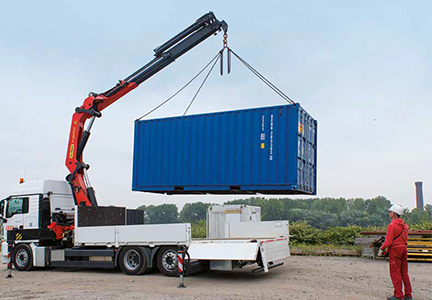

PK 44502 HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                     41.9 mt

Max. lifting capacity                                     16600 kg

Max. hydraulic outreach                               16.3 m

Slewing angle                                             400°

Slewing torque with 1 gear                          5.5 mt

Stabilizer spread (std)                                 7.4 m

Max. operating pressure                              320 bar

Dead weight (std.)                                      4399 kg

Width folded                                               2.51 m



A perfect combination of electronics and hydraulics allows high lifting power

and Maximum profitability



Maximum utilisation of the working range thanks to HPSC

Additional applications with Power Link Plus

Shorter load cycle times thanks to High Speed Extention

High value retention due to KTL coating

High operator friendliness thanks to radio remote control



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 44502 BROCHURE

PK 50002-EH HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    48.0 mt

Max. lifting capacity                                    17100 kg

Max. hydraulic outreach                               21.0 m

Max. manual outreach                                 25.2 m

Max. outreach (with fly jip)                          32.5 m

Slewing angle                                             ∞

Slewing torque with 1 gear                          4.0 mt

Slewing torque with 2 gears                         5.5 mt

Stabilizer spread (std)                                 7,8 m

Max. operating pressure                              350 bar

Dead weight (std.)                                      4145 kg

Width folded                                               2.51 m



Functional Design. Better looks and increased operational comfort during the

entire lifetime.



More efficiency with fly jib due to DPS Plus

Maximum utilisation of the working range thanks to HPSC

Additional applications due to Power Link Plus

Continuous slewing for increased efficiency and speed

Increased operating times due to low-maintenance extension system



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 50002 BROCHURE

PK 56502 HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    52.2 mt

Max. lifting capacity                                    20200 kg

Max. hydraulic outreach                              16.2 m

Slewing angle                                             370°

Slewing torque with 1 gear                          6.6 mt

Stabilizer spread (std)                                 7.8 m

Max. operating pressure                              320 bar

Dead weight (std.)                                      5130 kg

Width folded                                               2.55 m









Powerhouse for cost-efficient application. Solid and reliable crane power with proven High Performance qualities. This is how the PK 56502 presents itself to the market. Operators benefit from its efficient power to performance ratio and high slewing torque. Equipped with Power Link Plus, maintenance free extension system and functional design elements this crane has all features that make customers around the world more successful.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 56502 BROCHURE

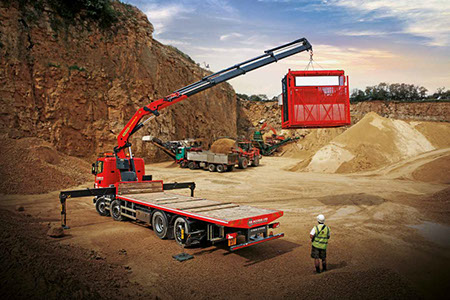

PK 63002 EH HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    59.4 mt

Max. lifting capacity                                    22000 kg

Max. hydraulic outreach                               20.4 m

Max. manual outreach                                 25.1 m

Max. outreach (with fly jip)                          30.4 m

Slewing angle                                             ∞

Slewing torque with 1 gear                          4.5 mt

Slewing torque with 2 gears                         7.0 mt

Stabilizer spread (std)                                 8.6 m

Max. operating pressure                              350 bar

Dead weight (std.)                                      5040 kg

Width folded                                               2.55 m



The continuous slewing system increases the efficiency in use during the

crane's entire lifetime.



• More effcient and faster due to continuous slewing system

• More lifting power due to E-HPLS

• Practical and attractive due to Functional Design

• High value retention due to KTL coating



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 63002 BROCHURE

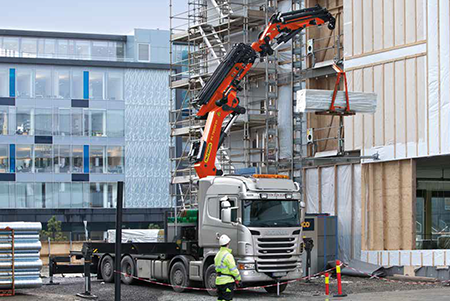

PK 76002 EH HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    71.6 mt

Max. lifting capacity                                    23000 kg

Max. hydraulic outreach                               20.4 m

Max. manual outreach                                 25.1 m

Max. outreach (with fly jip)                          30.5 m

Slewing angle                                             ∞

Slewing torque with 1 gear                          4.5 mt

Slewing torque with 2 gears                         7.0 mt

Stabilizer spread (std)                                 8.6 m

Fitting space required (std)                          1.71 m

Max. operating pressure                              350 bar

Dead weight (std.)                                      5910 kg

Width folded                                               2.55 m



Functional Design. For service friendliness, best appearance and high value

retention.



Additional applications due to Power Link Plus

Maximum utilisation of the working range due to HPSC

Practical and attractive due to Functional Design

More lifting power due to E-HPLS



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 76002 BROCHURE

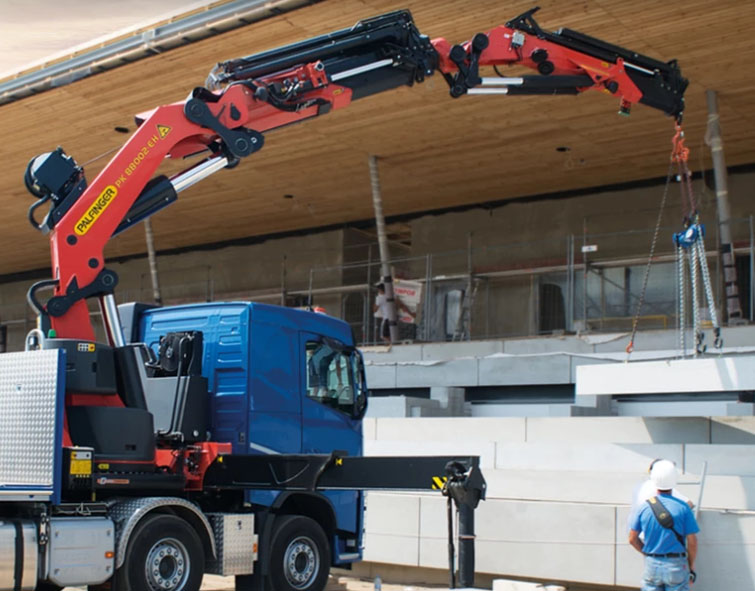

PK 88002 EH HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    81.6 mt

Max. lifting capacity                                    30000 kg

Max. hydraulic outreach                               22.5 m

Max. manual outreach                                 25.0 m

Max. outreach (with fly jip)                          32.4 m

Slewing angle                                             ∞

Slewing torque with 1 gear                          7.7 mt

Stabilizer spread (std)                                 8.6 m

Fitting space required (std)                          1.92 m

Max. operating pressure                              365 bar

Dead weight (std.)                                      6780 kg

Width folded                                               2.55 m



The Power Link Plus enables operations within confined spaces.



High value retention due to KTL coating

Additional applications due to Power Link Plus

Maximum utilisation of the working range due to HPSC

More lifting power due to E-HPLS



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 88002 BROCHURE

PK 100002 PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    92.2 mt

Max. lifting capacity                                    30000 kg

Max. hydraulic outreach                               22.0 m

Max. outreach (with fly jip)                          27.1 m

Max. outreach (with fly jip)                          34.3 m

Slewing angle                                             ∞

Slewing torque with 1 gear                          9.0 mt

Stabilizer spread (std)                                 8,6 m

Max. operating pressure                              365 bar

Dead weight (std.)                                      8800 kg

Width folded                                               2.55 m



With HPSC and Power Link Plus operations are possible even in restricted spaces



More lifting power due to E-HPLS

Additional applications due to Power Link Plus

More efficient and faster due to continuous slewing system

Shorter load-cycles due to high speed extension

Maximum reliability due to PAL 50



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 100002 BROCHURE

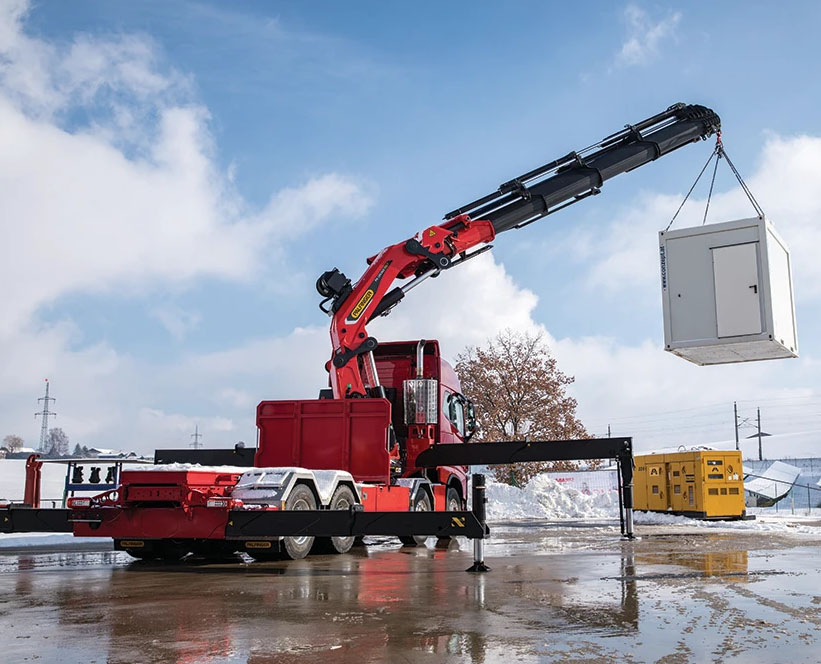

PK 135.002 TEC 7

TECHNICAL DATA

Max. lifting moment                                     109.3 mt

Max. lifting capacity                                     30000 kg

Max. hydraulic outreach                               22.0 m

Max. outreach (with fly jib)                          32.2 m

Slewing angle                                             ∞

Slewing torque with 1 gear                          10.6 mt

Stabilizer spread (std)                                 10.0 m

Fitting space required (std)                          2.45 m

Width folded                                               2.55 m

Max. operating pressure                              385 bar

Dead weight (std)                                       10170 kg



PRODUCT FEATURES

The patented PALFINGER "AOS" oscillation suppression system cancels out vibrations and blows that occur during crane operation. Any "post-oscillation" is prevented through rapid braking or load changes. The result is a decisive increase to safety in crane operation for employees, the load and building.



HOW IT WORKS

The electronics receive signals from pressure sensors on both sides of the elevating cylinder and interpret them as arm vibrations. The signals for the counter-movement of the elevating cylinder are handled by the control valve. The incurred vibration can be cancelled through the exactly determined frequency and wavelength. The result is damping of the arm to just one or two short vibrations so that the arm comes to an immediate standstill.



* Optional feature/country-specific-equipment



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 135.002 TEC 7 BROCHURE

PK 150002 PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    116.8 mt

Max. lifting capacity                                    40000 kg

Max. hydraulic outreach                               21.5 m

Max. outreach (with fly jip)                          26.9 m

Max. outreach (with fly jip)                          36.0 m

Slewing angle                                             ∞

Slewing torque with 1 gear                          12.0 mt

Stabilizer spread (std)                                 9,8 m

Max. operating pressure                              330 bar

Dead weight (std.)                                      11330 kg

Width folded                                               2.55 m



Superior crane technology. In the royal class of heavy load cranes, PK 150002 Performance sets new standards in terms of quality, working range and lifting capacity. This large high-tech crane masters extreme tasks and maximum loads just as easily as challenging precision work. Manufactured from first-class, super strong fine grain constructional steel, it impresses with its light weight and extraordinary performance. PK 150002 Performance – a new milestone in crane construction by PALFINGER.



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 150002 BROCHURE

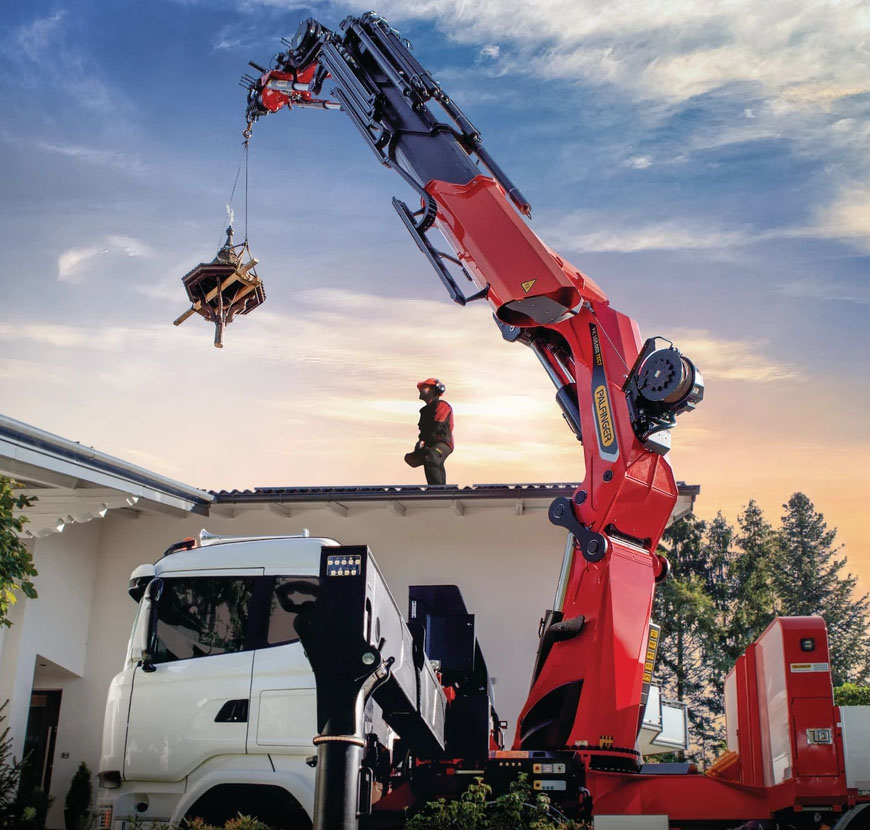

PK 165002 L HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    124.8 mt

Max. lifting capacity                                    32000 kg

Max. hydraulic outreach                               21.0 m

Max. outreach (with fly jip)                          36.1 m

Slewing angle                                             continuous

Slewing torque                                            12.0 mt

Stabilizer spread (std)                                 10,0 m

Width folded                                               2.55 m

Max. operating pressure                              385 bar

Recommended pump capacity                      2 x 120 l/min

Dead weight                                               (HYA C R4X) 11610 kg



Lightweight design meets high-tech control system



• Additional applications thanks to Power Link Plus

• Maximum reliability due to PAL 150

• More lifting power due to S-HPLS

• Additional applications with Power Link Plus

• High degree of user-friendliness thanks to PALcom P7

• Increased comfort and safety due to Soft Stop



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 165002 BROCHURE

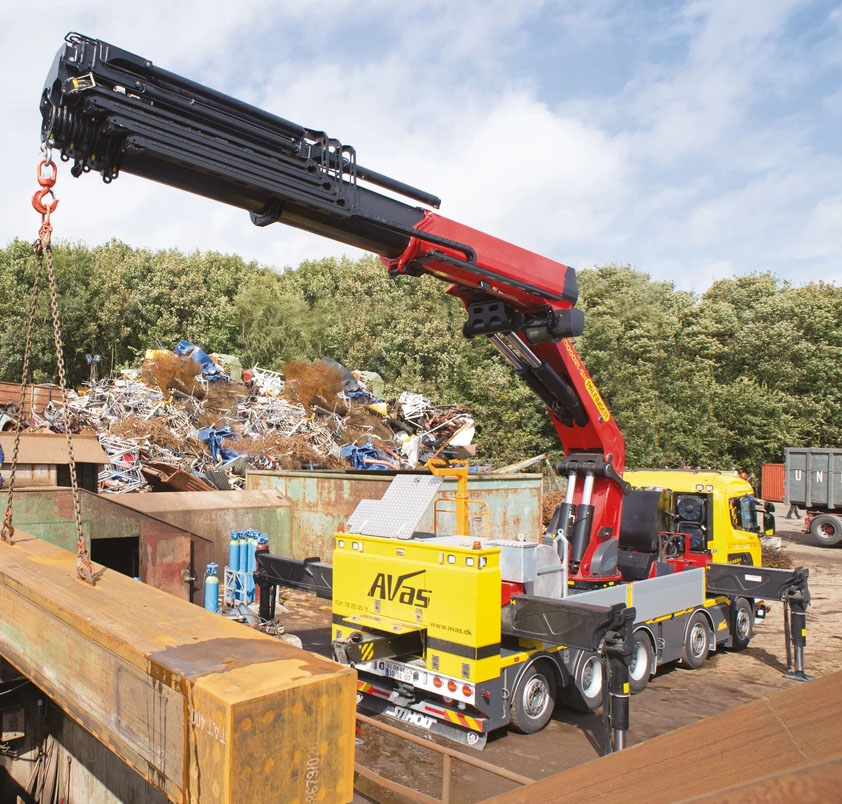

PK 200002 L SH HIGH PERFORMANCE

TECHNICAL DATA

Max. lifting moment                                    150.7 mt

Max. lifting capacity                                    40000 kg

Max. hydraulic outreach                               25.6 m

Max. outreach (with fly jip)                          47.9 m

Slewing angle                                             endless

Stabilizer spread (std)                                 10,4 m

Max. operating pressure                              385 bar



The long boom design is mainly intended for operations with high outreach



• High mobility due to the mounting on standard truck chassis

• Very stiff and light boom system thanks to new P-Profile

• Hydraulic lifting height of roughly 49 meter thanks to long boom design

• Additional applications with Power Link Plus

• High working speed thanks to double circuit control

• Special stabiliser concept with extendable rear stabiliser ram

• Maximum precision and safety due to AOS

• Maximum utilisation of the working range thanks to extended HPSC

• More efficiency with fly-jib due to DPS Plus



Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.



CLICK HERE TO DOWNLOAD THE PK 200002 BROCHURE

Important Links in the transport industry:



SA TRUCK BODIES | HENRED FRUEHAUF | BENETRAX | RENTCO | TRAILSTAR | RVB | ROUTE MANAGEMENT BLOG



Copyright © PALFINGER SA 2018 | All Rights Reserved | Web-master Johan Pretorius
